BSM6080-PRO01 2-Pocket Currency Sorting and Counting Machine With Fitness Detection

High-Speed Currency Processing

• Fast Counting and Sorting – Counts up to 1,300 notes/min, with sorting and serial number reading speeds of up to 1,000 notes/min.
• Multiple Processing Modes – Supports MIX, SORT, COUNT, Multi-Currency Mixed List, S/N Scan & Search, Face & Orientation, Automatic, and Full Fitness modes.
• Multi-Currency Processing – Processes different supported currencies and denominations for international cash-handling applications.

Fitness Sorting and Authentication

• Full Fitness Sorting – Sorts banknotes according to ATM and circulation standards while identifying tape, holes, tears, stains, graffiti, soiled notes, and other physical defects.
• Optional Tape Detection – An optional 24-channel thickness sensor supports the detection of taped and repaired banknotes.
• Multi-Sensor Authentication – Combines dual CIS full-RGB imaging, UV detection, IR reflection and transmission, and 11-channel magnetic detection.
• Serial Number Recognition – Supports banknote serial number reading, scanning, and searching for cash records and traceability.

Flexible Dual-Control Operation

• Membrane Switch and Touchscreen Control – Combines a 4.3-inch full touch screen with membrane buttons to accommodate different operating preferences.
• 1+1 Pocket Structure – Uses a main stacker and an independent reject pocket to separate accepted and rejected banknotes.
• Configurable Sorting Parameters – Allows sorting and detection settings to be adjusted according to operational requirements.

Capacity and Connectivity

• Continuous Banknote Processing – A large-capacity hopper, main stacker, and separate reject pocket support efficient daily cash handling.

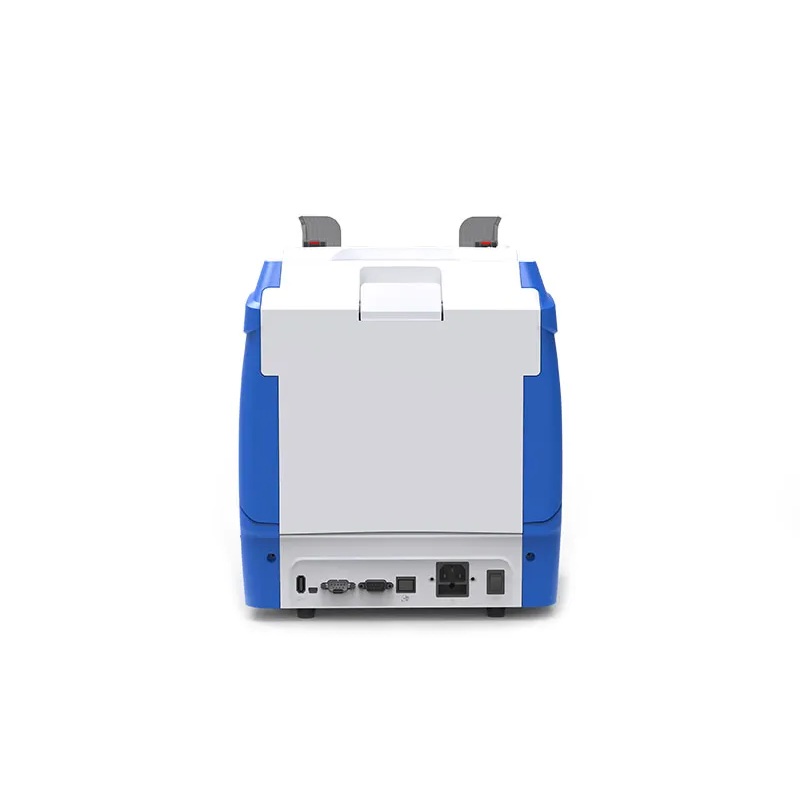

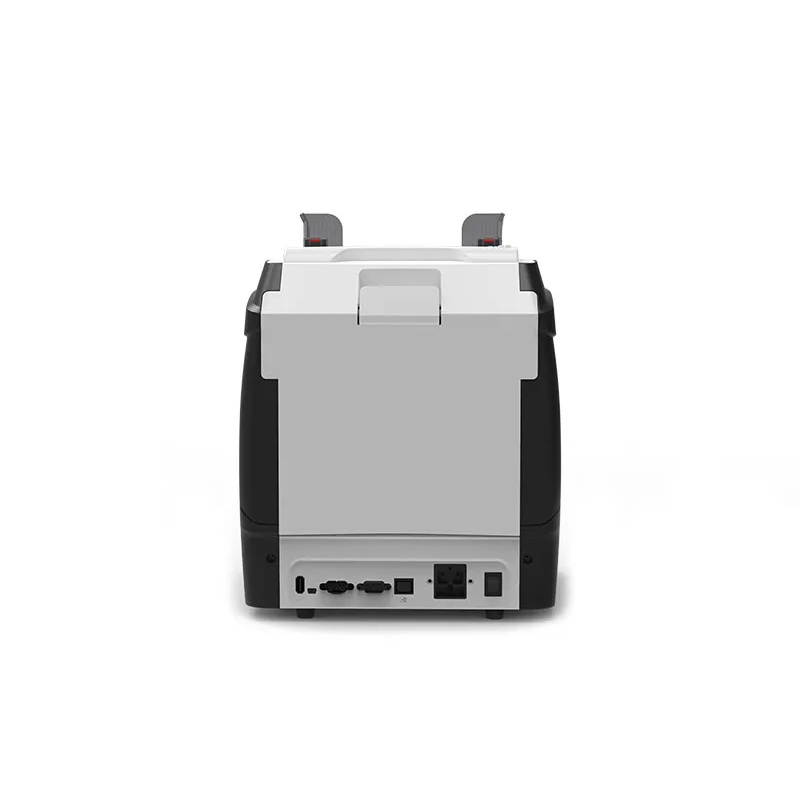

• Multiple External Interfaces – Supports USB, LAN, an external display, and an RS-232 connection for an external printer.

Durable Design and Easy Maintenance

• Durable and Stable Construction – Uses a robust structure designed to support frequent daily operation and reliable long-term performance.
• Three-Module Fully Open Channel – Provides convenient access for removing jammed banknotes, routine cleaning, and daily maintenance.

Product Certificates

• Certificates – CE, FCC, RoHS, ISO 9001, and ISO 14001.
